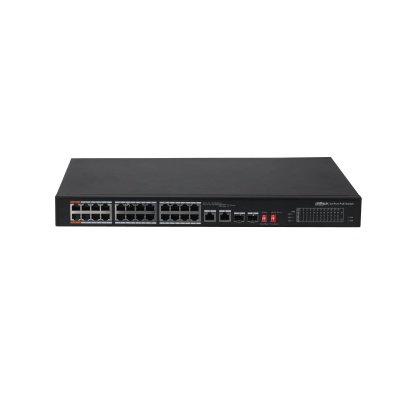

Dahua 24 Port Poe Switch (PFS3226-24ET-240)

Description

Key Features:

• 24 × PoE Ethernet Ports + 2 Uplink Gigabit Ports + 2 SFP Ports:
  Designed to power multiple PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones, while ensuring smooth data uplink and fiber expansion options.

• High PoE Power Budget – 240W Total:
  Supports IEEE 802.3af/at standards, delivering up to 30W per port, suitable for high-power devices.

• Long Distance PoE Transmission:
  Offers up to 250 meters PoE transmission under Extend Mode, perfect for distant IP camera installations without additional extenders.

• Intelligent PoE Management:
  Automatically detects power priority and restarts unresponsive devices to maintain a stable system.

• Surge Protection:
  Built-in 6kV surge protection ensures devices are protected against power spikes and surges.

• VLAN Support (Extend Mode):
  One-click VLAN mode isolates ports for security and bandwidth optimization in surveillance applications.

• Robust Metal Housing:
  Industrial-grade metal enclosure with fanless design for quiet operation and long service life.

Technical Specifications:

• Model: PFS3226-24ET-240

• Ethernet Ports: 24 × 10/100Mbps PoE

• Uplink Ports: 2 × 10/100/1000Mbps, 2 × SFP

• PoE Budget: 240W

• PoE Standard: IEEE802.3af/at

• Max Power Per Port: 30W

• Surge Protection: 6kV

• Transmission Distance: Up to 250m (Extend Mode)

• Power Supply: Built-in

• Dimensions: Compact rackmountable design

Applications:

• IP surveillance and NVR camera networks

• Office building network infrastructure

• Campus or multi-floor commercial buildings

• VoIP and wireless access point deployment

• Smart home and industrial networking

The Dahua PFS3226-24ET-240 combines high performance, intelligent PoE management, and long-distance capabilities—making it the go-to switch for demanding security and network installations.
